cargo area measurements, seats folded down

[painu]

Hi

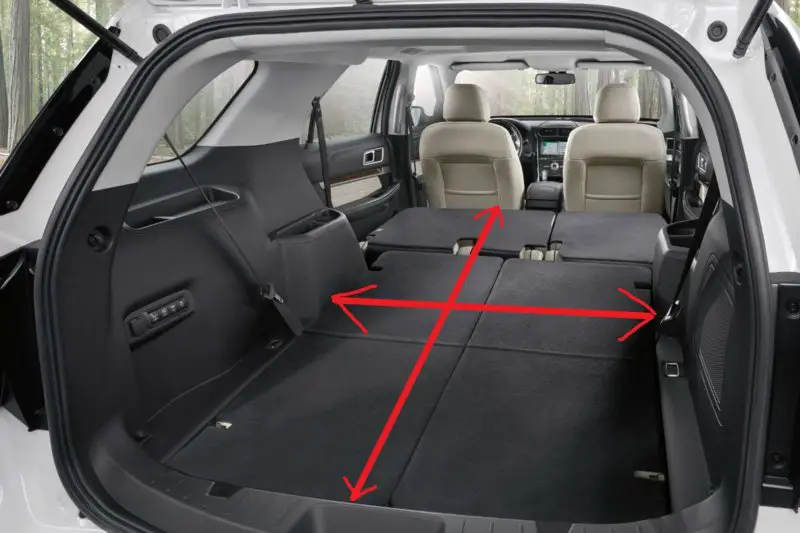

Could anyone please help and share the trunk dimensions I marked in the attached image? It's very important for me to get to know it and I haven't had any success searching for the infromation online (and it took me a while)

Thank you very much in advance!


best regards,
peter



[Explorer Phil]

Hi

Could anyone please help and share the trunk dimensions I marked in the attached image? It's very important for me to get to know it and I haven't had any success searching for the infromation online (and it took me a while)

Thank you very much in advance!


best regards,
peter

View attachment 172572

We have a 2016 limited, and the dimensions are length is 70 inches. The width is 41 inches. Hope this helps.



[BerndM]

I just measured my 17 Platinum and the 41" side to side is correct.
From the forward edge of the folded down second row seats to the back is 70"
However if you measure to the backs of the front seats, then that goes to 83"
It was a bit hard to tell if your red arrow ended at the seat edges or went all the way to the front seats.
Hope this helps



[painu]

Guys - it's an honor to be a part of this forum
Actually, both dimensions (to the front seats / edge of the folded seats) are important so thanks again for all the info. You helped a lot.

cheers!
peter



[peterk9]

Guys - it's an honor to be a part of this forum
Actually, both dimensions (to the front seats / edge of the folded seats) are important so thanks again for all the info. You helped a lot.

cheers!
peter

Welcome to the Forum Peter.

Peter



[Yanik4]

maximum I could fit was 18" by 8' long PLY sheet diagonally on top of some 2by4s (see pics attached) Front seat moved to the front & top most position and then the back is moved forward as much as it goes



[BerndM]

Too bad Ford didn't design the front seats, or at least the passenger seat to fold down.
A missed opportunity for sure.
